美制過渡接頭

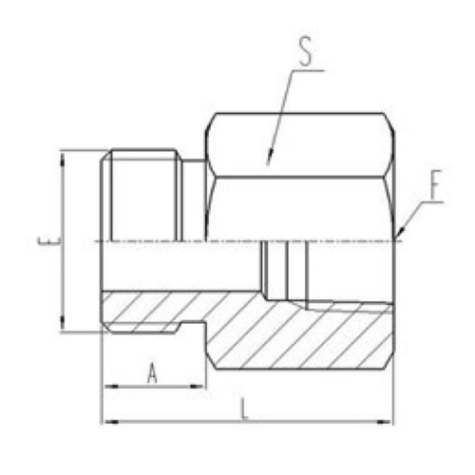

名稱：美制布錐管螺紋密封過渡接頭
詳細信息
美制布錐管螺紋密封過渡接頭的詳細介紹：
|
代 號
|
螺 紋 THREAD
|
尺 寸 DIMENSIONS
|
|||
|
PART NO.
|
E
|
F
|
A
|
S
|
L
|
|
5ON-04-02
|
7/16"X20
|
Z1/8"X27
|
9.1
|
17
|
26
|
|
5ON-04
|
7/16"X20
|
Z1/4"X18
|
9.1
|
19
|
30.5
|
|
5ON-04-06
|
7/16"X20
|
Z3/8"X18
|
9.1
|
24
|
30.7
|
|
5ON-05-02
|
1/2"X20
|
Z1/8"X27
|
9.1
|
17
|
26
|
|
5ON-06-04
|
9/16"X18
|
Z1/4"X18
|
9.9
|
19
|
31.5
|
|
5ON-08-04
|
3/4"X16
|
Z1/4"X18
|
11.1
|
22
|
32.5
|
|
5ON-08-06
|
3/4"X16
|
Z3/8"X18
|
11.1
|
22
|
34
|
|
5ON-08
|
3/4"X16
|
Z1/2"X14
|
11.1
|
30
|
40
|
|
5ON-08-12
|
3/4"X16
|
Z3/4"X14
|
11.1
|
36
|
40.1
|
|
5ON-10-04
|
7/8"X14
|
Z1/4"X18
|
12.7
|
27
|
34
|
|
5ON-10-08
|
7/8"X14
|
Z1/2"X14
|
12.7
|
30
|
41.5
|
|
5ON-10-06
|
7/8"X14
|
Z3/8"X18
|
12.7
|
27
|
35.5
|
|
5ON-10-12
|
7/8"X14
|
Z3/4"X14
|
12.7
|
36
|
41
|
|
5ON-12-08
|
1.1/16"X12
|
Z1/2"X14
|
15.1
|
32
|
42
|
|
5ON-12
|
1.1/16"X12
|
Z3/4"X14
|
15.1
|
36
|
45.5
|
|
5ON-12-16
|
1.1/16"X12
|
Z1"X11.5
|
15.1
|
41
|
50.3
|
|
5ON-14-08
|
1.3/16"X12
|
Z1/2"X14
|
15.1
|
36
|
40
|
|
5ON-14-12
|
1.3/16"X12
|
Z3/4"X14
|
15.1
|
36
|
43
|
|
5ON-16-08
|
1.5/16"X12
|
Z1/2"X14
|
15.1
|
38
|
42
|
|
5ON-16-12
|
1.5/16"X12
|
Z3/4"X14
|
15.1
|
38
|
43
|
|
5ON-16
|
1.5/16"X12
|
Z1"X11.5
|
15.1
|
41
|
51.5
|
|
5ON-20-16
|
1.5/8"X12
|
Z1"X11.5
|
15.1
|
50
|
42
|
|
5ON-20
|
1.5/8"X12
|
Z1.1/4"X11.5
|
15.1
|
50
|
53.5
|
|
5ON-24-16
|
1.7/8"X12
|
Z1"X11.5
|
15.1
|
55
|
45
|
|
5ON-24
|
1.7/8"X12
|
Z1.1/2"X11.5
|
15.1
|
60
|
53.5
|
|
5ON-32-16
|
2.1/2"X12
|
Z1"X11.5
|
15.1
|
70
|
45
|
|
5ON-32-24
|
2.1/2"X12
|
Z1.1/2"X11.5
|
15.1
|
70
|
45
|
|
5ON-32
|
2.1/2"X12
|
2"X11.5
|
15.1
|
70
|
53.5
|
美制布錐管螺紋密封過渡接頭
