美制過渡接頭

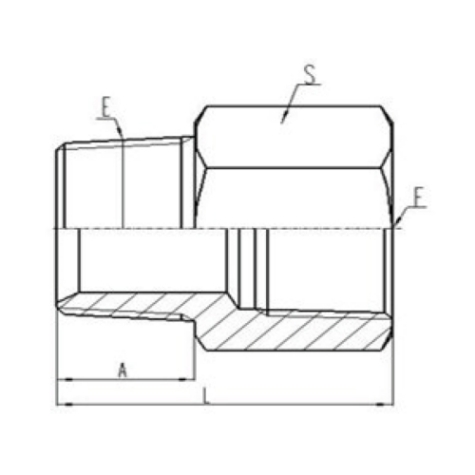

名稱：美制布錐管螺紋密封過渡接頭
詳細信息
美制布錐管螺紋密封過渡接頭的詳細介紹：
|
代 號
|
螺紋 THREAD
|
尺 寸 DIMENSIONS
|
|||
|
PART NO.
|
E
|
F
|
A
|
L
|
S
|
|
5N-02
|
Z1/8"X27
|
Z1/8"X27
|
10.5
|
25.5
|
17
|
|
5N-02-04
|
Z1/8"X27
|
Z1/4"X18
|
10.5
|
31
|
19
|
|
5N-02-06
|
Z1/8"X27
|
Z3/8"X18
|
11
|
31
|
24
|
|
5N-04-02
|
Z1/4"X18
|
Z1/8"X27
|
15
|
22
|
17
|
|
5N-04
|
Z1/4"X18
|
Z1/4"X18
|
15
|
35.3
|
19
|
|
5N-04-06
|
Z1/4"X18
|
Z3/8"X18
|
15
|
36.6
|
24
|
|
5N-04-08
|
Z1/4"X18
|
Z1/2"X14
|
15
|
43
|
30
|
|
5N-06-02
|
Z3/8"X18
|
Z1/8"X27
|
16
|
22
|
19
|
|
5N-06-04
|
Z3/8"X18
|
Z1/4"X18
|
16
|
22
|
19
|
|
5N-06
|
Z3/8"X18
|
Z3/8"X18
|
16
|
37.6
|
24
|
|
5N-06-08
|
Z3/8"X18
|
Z1/2"X14
|
17
|
43.7
|
30
|
|
5N-06-12
|
Z3/8"X18
|
Z3/4"X14
|
17
|
47
|
36
|
|
5N-08-04
|
Z1/2"X14
|
Z1/4"X18
|
19.5
|
28
|
24
|
|
5N-08-06
|
Z1/2"X14
|
Z3/8"X18
|
19.5
|
28.5
|
24
|
|
5N-08
|
Z1/2"X14
|
Z1/2"X14
|
19.5
|
47.5
|
30
|
|
5N-08-12
|
Z1/2"X14
|
Z3/4"X14
|
19.5
|
49
|
36
|
|
5N-12-06
|
Z3/4"X14
|
Z3/8"X18
|
19.5
|
30.5
|
27
|
|
5N-12-08
|
Z3/4"X14
|
Z1/2"X14
|
19.5
|
30.5
|
27
|
|
5N-12
|
Z3/4"X14
|
Z3/4"X14
|
19.5
|
49
|
36
|
|
5N-12-16
|
Z3/4"X14
|
Z1"X11.5
|
19.5
|
55.4
|
41
|
|
5N-16-08
|
Z1"X11.5
|
Z1/2"X14
|
25.5
|
35.5
|
36
|
|
5N-16-12
|
Z1"X11.5
|
Z3/4"X14
|
25.5
|
36.5
|
36
|
|
5N-16
|
Z1"X11.5
|
Z1"X11.5
|
25.5
|
60.7
|
41
|
|
5N-16-20
|
Z1"X11.5
|
Z1.1/4"X11.5
|
25.5
|
63.5
|
50
|
|
5N-20-12
|
Z1.1/4"X11.5
|
Z3/4"X14
|
26.5
|
38.5
|
46
|
|
5N-20-16
|
Z1.1/4"X11.5
|
Z1"X11.5
|
26.5
|
41
|
46
|
|
5N-20
|
Z1.1/4"X11.5
|
Z1.1/4"X11.5
|
26.5
|
61.5
|
50
|
|
5N-20-24
|
Z1.1/4"X11.5
|
Z1.1/2"X11.5
|
26.5
|
62.5
|
60
|
|
5N-24-16
|
Z1.1/2"X11.5
|
Z1"X11.5
|
27.5
|
41.5
|
50
|
|
5N-24-20
|
Z1.1/2"X11.5
|
Z1.1/4"X11.5
|
27.5
|
41
|
50
|
|
5N-24
|
Z1.1/2"X11.5
|
Z1.1/2"X11.5
|
27.5
|
62.5
|
65
|
|
5N-24-32
|
Z1.1/2"X11.5
|
Z2"X11.5
|
27.5
|
66.5
|
70
|
|
5N-32-20
|
Z2"X11.5
|
Z1.1/2"X11.5
|
27.5
|
44.5
|
65
|
|
5N-32-24
|
Z2"X11.5
|
Z1.1/2"X11.5
|
27.5
|
45
|
65
|
|
5N-32
|
Z2"X11.5
|
Z2"X11.5
|
27.5
|
62.5
|
70
|
美制布錐管螺紋密封過渡接頭
