英制過渡接頭

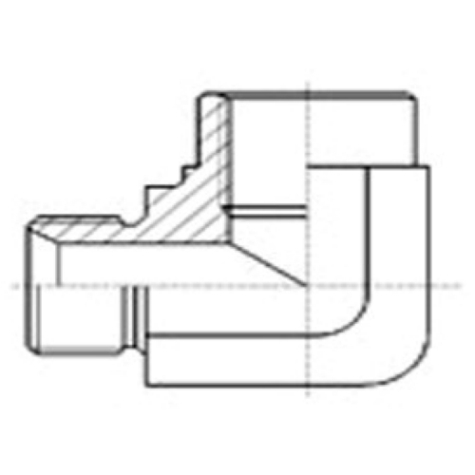

名稱：90°彎英制外螺紋60°內錐面密封或組合墊密封.英制固定內螺紋鋼墊密封
詳細信息
90°彎英制外螺紋60°內錐面密封或組合墊密封.英制固定內螺紋鋼墊密封的詳細介紹：
|
代 號
|
螺紋 THREAD
|
尺 寸 DIMENSIONS
|
|||
|
PART NO.
|
E
|
F
|
L1
|
L2
|
S
|
|
1BT9-02SP
|
G1/8" X28
|
R1/8" X28
|
19.8
|
21
|
11
|
|
1BT9-02-04SP
|
G1/8" X28
|
R1/4" X19
|
22.3
|
25.5
|
14
|
|
1BT9-04-02SP
|
G1/4" X19
|
R1/8" X28
|
24.5
|
23.5
|
14
|
|
1BT9-04SP
|
G1/4" X19
|
R1/4" X19
|
24.5
|
25.5
|
14
|
|
1BT9-04-06SP
|
G1/4" X19
|
R3/8" X19
|
26.5
|
28.5
|
16
|
|
1BT9-04-08SP
|
G1/4" X19
|
R1/2" X14
|
30
|
36
|
22
|
|
1BT9-06-04SP
|
G3/8" X19
|
R1/4" X19
|
27.5
|
26.5
|
16
|
|
1BT9-06SP
|
G3/8" X19
|
R3/8" X19
|
27.5
|
28.5
|
16
|
|
1BT9-06-08SP
|
G3/8" X19
|
R1/2" X14
|
31
|
36
|
22
|
|
1BT9-06-12SP
|
G3/8" X19
|
R3/4" X14
|
34.5
|
43.5
|
27
|
|
1BT9-08-04SP
|
G1/2" X14
|
R1/4" X19
|
34.5
|
30.5
|
22
|
|
1BT9-08-06SP
|
G1/2" X14
|
R3/8" X19
|
34.5
|
32.5
|
22
|
|
1BT9-08SP
|
G1/2" X14
|
R1/2" X14
|
34.5
|
36
|
22
|
|
1BT9-08-12SP
|
G1/2" X14
|
R3/4" X14
|
37.5
|
43.5
|
27
|
|
1BT9-08-16SP
|
G1/2" X14
|
R1" X11
|
41
|
50
|
33
|
|
1BT9-10-08SP
|
G5/8" X14
|
R1/2" X14
|
35
|
36
|
22
|
|
1BT9-10-12SP
|
G5/8" X14
|
R3/4" X14
|
39
|
43.5
|
27
|
|
1BT9-12-06SP
|
G3/4" X14
|
R3/8" X19
|
40
|
36
|
27
|
|
1BT9-12-08SP
|
G3/4" X14
|
R1/2" X14
|
40
|
39.5
|
27
|
|
1BT9-12SP
|
G3/4" X14
|
R3/4" X14
|
40
|
43.5
|
27
|
|
1BT9-12-16SP
|
G3/4" X14
|
R1" X11
|
41
|
50
|
33
|
|
1BT9-12-20SP
|
G3/4" X14
|
R1.1/4" X11
|
48
|
59
|
41
|
|
1BT9-16-08SP
|
G1" X11
|
R1/2" X14
|
46
|
43
|
33
|
|
1BT9-16-12SP
|
G1" X11
|
R3/4" X14
|
46
|
47.5
|
33
|
|
1BT9-16SP
|
G1" X11
|
R1" X11
|
46
|
50
|
33
|
|
1BT9-16-20SP
|
G1" X11
|
R1.1/4" X11
|
50.5
|
59
|
41
|
|
1BT9-20-12SP
|
G1.1/4" X11
|
R3/4" X14
|
50.5
|
52
|
41
|
|
1BT9-20-16SP
|
G1.1/4" X11
|
R1" X11
|
50.5
|
56.5
|
41
|
|
1BT9-20SP
|
G1.1/4" X11
|
R1.1/4" X11
|
50.5
|
59
|
41
|
|
1BT9-20-24SP
|
G1.1/4" X11
|
R1.1/2" X11
|
54.5
|
62.5
|
48
|
|
1BT9-24-20SP
|
G1.1/2" X11
|
R1.1/4" X11
|
57.5
|
61
|
48
|
|
1BT9-24SP
|
G1.1/2" X11
|
R1.1/2" X11
|
57.5
|
62.5
|
48
|
|
1BT9-24-32SP
|
G1.1/2" X11
|
R2" X11
|
65
|
75
|
63
|
|
1BT9-32-24SP
|
G2" X11
|
R1.1/2" X11
|
67
|
72
|
63
|
|
1BT9-32SP
|
G2" X11
|
R2" X11
|
67
|
75
|
63
|
90°彎英制外螺紋60°內錐面密封或組合墊密封.英制固定內螺紋鋼墊密封
